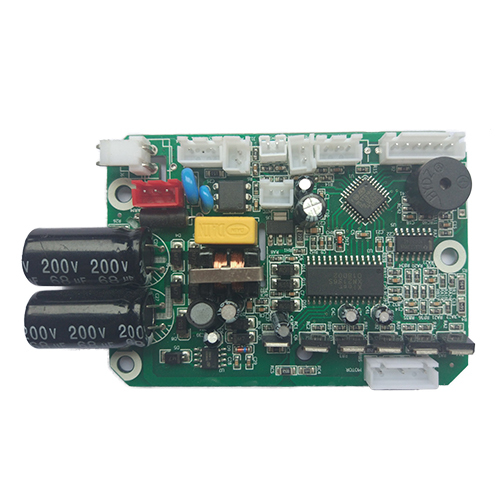

LY-30C Air Conditioner Fan Electric Control Board

Get a Price/Quote

MOQ : 100 Pieces

LY-30C Air Conditioner Fan Electric Control Board Specification

Test
100% E-Test

Silkscreen
White

Board Type
Single Sided PCB

Min. Line Width
0.15 mm

Insulation Resistance
>500M

Flame Resistance Level
UL94V-0

Min. Line Spacing
0.15 mm

Hole Size
0.8 mm

Soldermask
Green

Voltage Endurance
1500V/min

Impedance
10%

Product Type
Air Conditioner Fan Electric Control Board

Base Material
FR4

Surface Finish
HASL (Hot Air Solder Leveling)

Copper Thickness
1 oz

Board Thickness
Different available Millimeter (mm)

Color
Green

Panel Size
Different Available

Sensor Switch
Yes

Electrical Components
Integrated Circuit, Relays, Resistors, Capacitors

Number Of Layers
2

Warranty
Yes

PCB Certification
RoHS Compliant

Dimensions
120 mm x 78 mm x 20 mm

Connector Type
Pin Header

Input Frequency
50/60Hz

Mounting Type
Panel Mount

Control Mode
Microcontroller Based

Weight
145g

Operating Temperature
-10C to 60C

Compatible Equipment
Air Conditioner Fan Unit

Operating Voltage
220V AC

LY-30C Air Conditioner Fan Electric Control Board Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10000 Pieces Per Month

Delivery Time
10 Days

About LY-30C Air Conditioner Fan Electric Control Board

LY-30C Air Conditioner Fan Electric Control Board is responsible for controlling and coordinating the various electrical components of the fan in an air conditioning unit, such as the motor, temperature sensors, and safety features. The control board receives input from the user through the air conditioner's interface and uses that information to determine when to activate the fan to circulate the air and cool the room. LY-30C Air Conditioner Fan Electric Control Board is a critical component of an air conditioner fan, ensuring efficient and effective cooling while also providing advanced features to make the process easier and more customizable.
